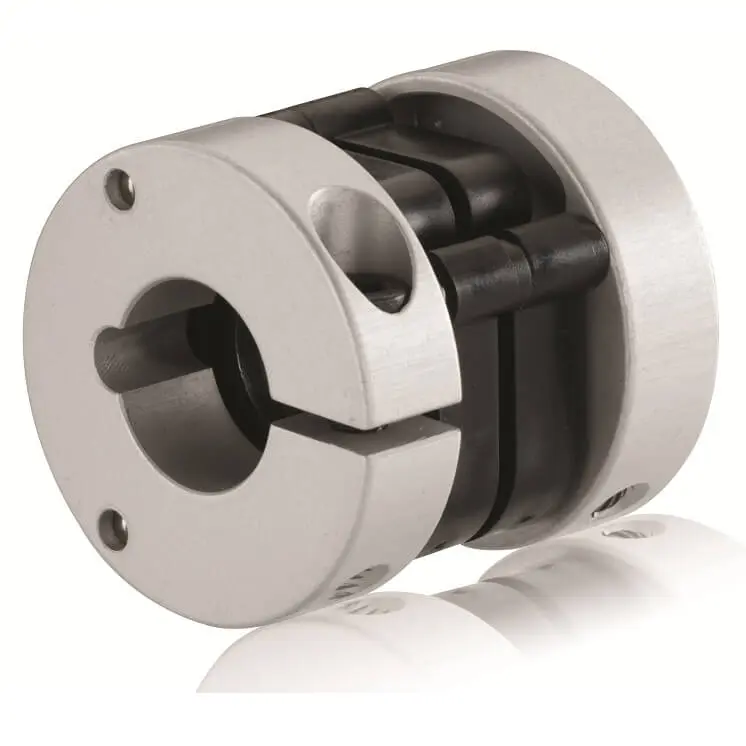

Controlflex Impuls Plus
Schmidt-Kupplung Gmbh Controlflex Impuls Plus
Principle of function
Controlflex is a precision coupling designed to meet the mechanical and metrological requirements of encoders. Through its unique function element, the compact shaft encoder coupling combines extremely low restoring force and low stress on the encoder bearings with constant angle-synchronous transmission of the rotary movement. This backlash-free coupling is electrically insulating, easy to assemble, designed for speeds up to 25,000 min-1, and thus the ideal coupling for shaft encoders, encoders and tachometers.
Impuls Plus Line
A product line for maximum measuring system resolution. It is perfect for shaft encoders whose high resolution is ensured by fine-tuned signal sequences per revolution. The couplings of this line provide radial, axial and angular displacement capacity up to 1 mm, 0.7 mm and 1° respectively. They are available for shaft diameters from 3 to 20 mm.
