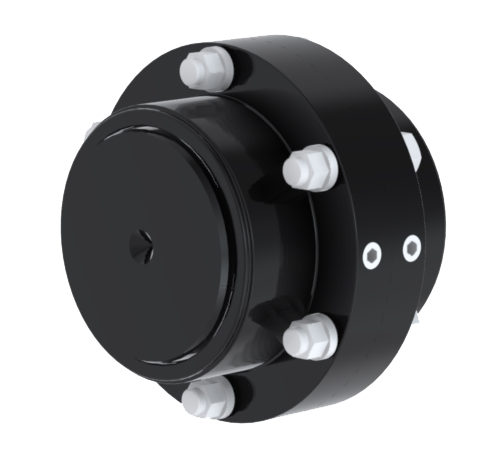

Esco Full gear coupling EFG Series
General Details
Esco Full gear coupling EFG Series

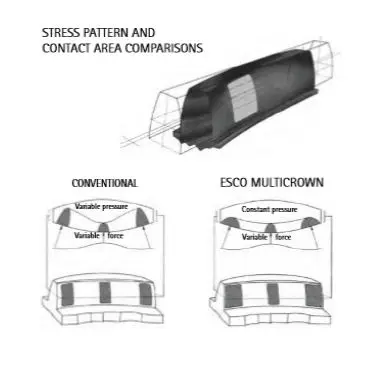

- LOWER STRESSES
The ESCO MULTICROWN tooth form is a curve with
constantly changing radii of curvature. The tooth contact
area under misaligned conditions has a much larger radius
of curvature than conventional crowning. The contact area
therefore is larger thus reducing the surface stresses.
- LESS BACKLASH
The ESCO MULTICROWN tooth design requires less backlash
for a given angle of misalignment than the conventional
crowning, thus reducing shocks in reversing application.
Documents
