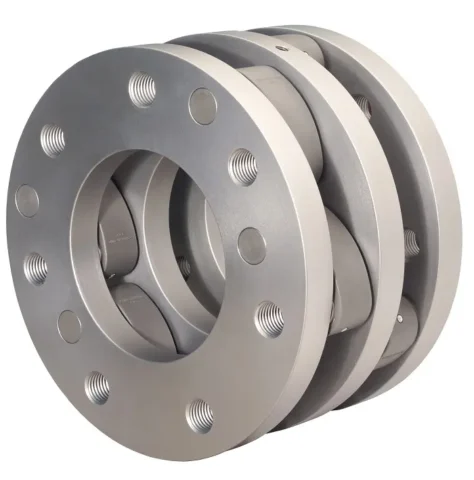

Semiflex Compact Plus C
SCHMIDT-KUPPLUNG GmbH Semiflex Compact Plus C
The Semiflex coupling is a torsionally stiff and restoring-force-free precision coupling. In addition to the compensation of axial and angular displacements, it provides high radial displacement capacity together with compact design.
The displacement compensation is restoring force-free and takes place via the unique system of two pairs of elements offset by 90°. The angle synchronisation of the connected shafts is retained at all times.
Compact Plus C Line – For axially extremely confined installation space
For axially extremely confined installation space – up to 25% shorter length compared to the Standard line, while maintaining performance values and displacement options. The Compact Plus line is available for nominal torques up to 7,040 Nm.
Different hub shapes can be combined as required
There are various force-fit and positive-locking hub shapes to choose from. They can be combined as required and thus precisely and individually adapted to the specific requirements.
> Application fields
Semiflex application fields include:
· Packaging machines
· Machine tools
· Conveyor technology
· Coating systems
· Profiling systems
· Automatic assembly machines and much more
